Fanmaster
PORTABLE EVAPORATIVE AIR COOLER SINGLE DIRECTIONAL – PACISD
-
$3162.98$2617.64 -
$3162.98$2399.50
Stock:
- NSW 1: 7
- NSW 2: 0
- WA: 0
Product desciption

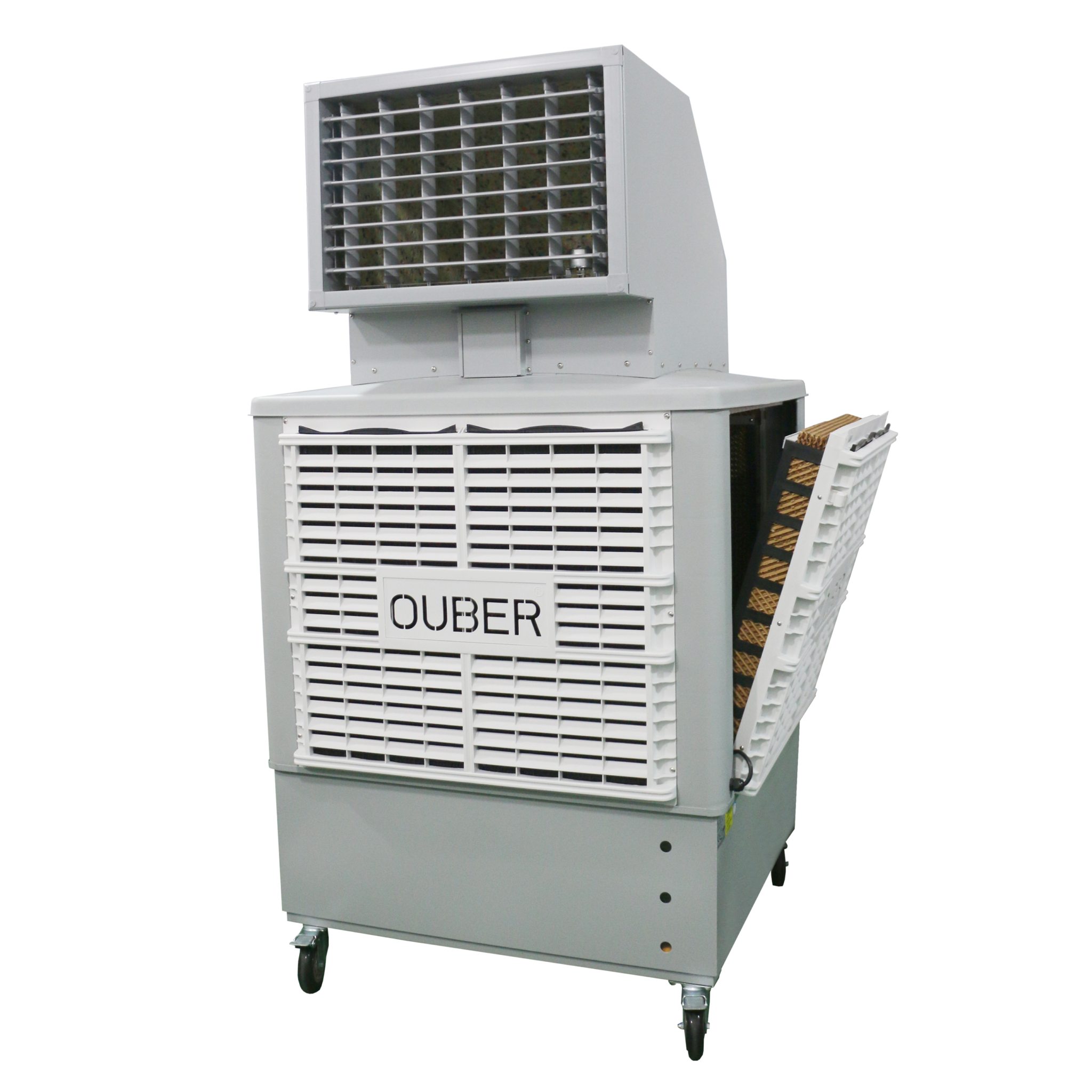

The Ouber PACISD is an industrial evaporative air cooler which utilises the natural process of using evaporation to cool the air. The PACISD uses a low wattage water pump to circulate water from the water tank on to four cooling pads, which in turn becomes very wet. The 1.1KW fan draws air from outside the unit through the damped pads. As it passes through the pads the air is cooled by evaporation. The PACISD is ideal for open areas and is capable of cooling areas of up to 150m² but is also suitable for spot cooling.
-
- Single direction air outlet
- Automatic swing louvres
- Low power consumption
- Variable speed
- 4 air inlet sections
- Remote control
- Can be connected to a regular garden hose for continuous water supply
- Float valve sensor
Specification
| Part No. | PACISD |
| Air Flow (L/s) | 5,000 |
| Fan Type | Axial |
| Noise Level (dBa) | < 68 |
| Motor (K/W) | 1.1 |
| Voltage/Frequency | 220~240/50 |
| Current (A) | 7.5 |
| Plug Connection | 3 Pin 10A |
| Cooling Area (m2) | up to 150 |
| Air Supply Distance (m) | 28 |
| Tank Capacity (L) | 300 |
| Water Consumption (L/H) | 15 |
| Fan Speed | Variable |
| Cooling Pad Size (mm) | 700*770 |
| Cooling Pad Thickness (mm) | 100 |
| Material of Blades | ABS |
| Material of Body | PP body + Galvanised Steel Tank |
| Material of Cooling Pads | |
| Weight (KG) | 98 / 120 |
| Product Dimensions (mm) | 1080*1080*1940 |
| Pack Dimensions (mm) | 1080*1080*2150 |

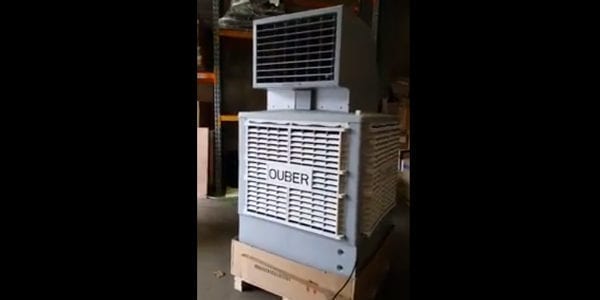

Videos
Downloads
Tips
- Use clean water for longevity of unit
- Bore water is not recommended with this unit
- If using bore water, regular maintenance of the water pump, cooling pads & tank will be required
