Product desciption

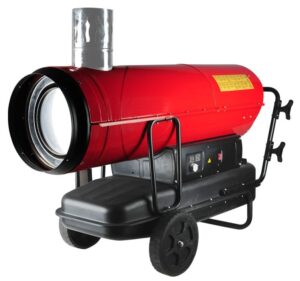

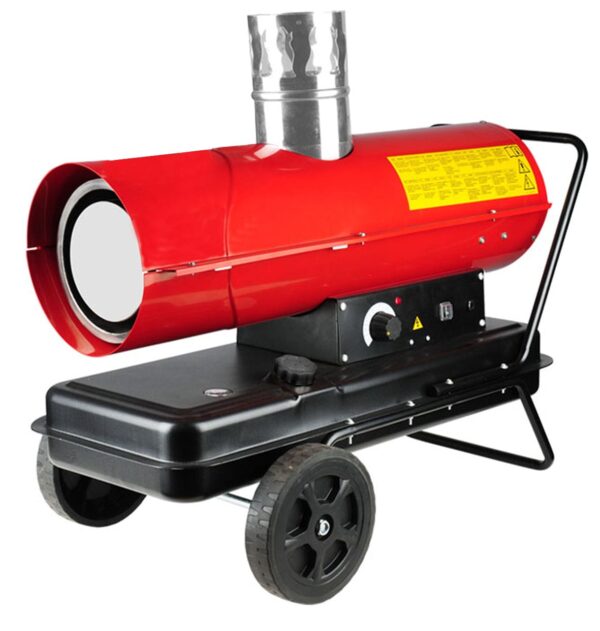

The compact Fanmaster 20KW (68,240 BTU) Indirect Fired diesel heater produces an instantaneous heat that uses a flue system positioned on top of the heater to allow the fumes to escape which creates a cleaner dry heat which is ideal for confined spaces or areas with limited ventilation. Ducting can be attached to the flue to exhaust the fumes out. This unit must be used in well ventilated areas when the flue system is not being used and is for industrial use only
- Unit functions on both Diesel or Kerosene
- Run time 12hr
- Stainless steel combustion chamber with fan cooling
- Cut off protection; flame sensor; if no fuel heater will cut out
- Portable on wheels
| Part No. | IDH2-20IN |
| Heat Output (K/W)
(BTU) |
20
68,240 |
| Heating Type | Indirect Fired |
| Air Flow (L/S) | 166 |
| Motor (K/W) | 0.23 |
| Voltage | 240 |
| Current (A) | 1.1 |
| Plug Connection | 3 Pin 10amp |
| Heating Area (m2) | 200 |
| Tank Size (L) | 24 |
| Consumption (L/H) | 1.9 |
| Pressure (PSI) | 0.38 |
| Fan Speed | 1 |
| Heat Settings | 1 |
| Weight (kg) | 22/24 |
| Dimensions (mm) | (W)840x(D)450x(H)695 |
| Packaging (mm) | (W)825x(D)360x(H)525 |
- Check your diesel fuel is clean
- Adequate ventilation is required, try and position the heater near a roller door so its drawing fresh air in
- In colder regions you may have more issues with diesel fuel solidifying causing blockages in fuel lines and nozzles, blending a mixture of Kerosene essentially helps thin out the fuel creating less blockage
- Try not to leave your heater out in the cold after use, cover it with a tarp or blanket which will help melt the fuel lines stopping any blockages
- After winter try not to leave any diesel in the tank, use it all up and drain out of the tank and cover it with a tarp or blanket and store it away
- Maintenance is key, ensure your maintaining your heater a minimum twice a year – check, clean or replace fuel nozzle, fuel line, fuel filter, air line & air pump.
